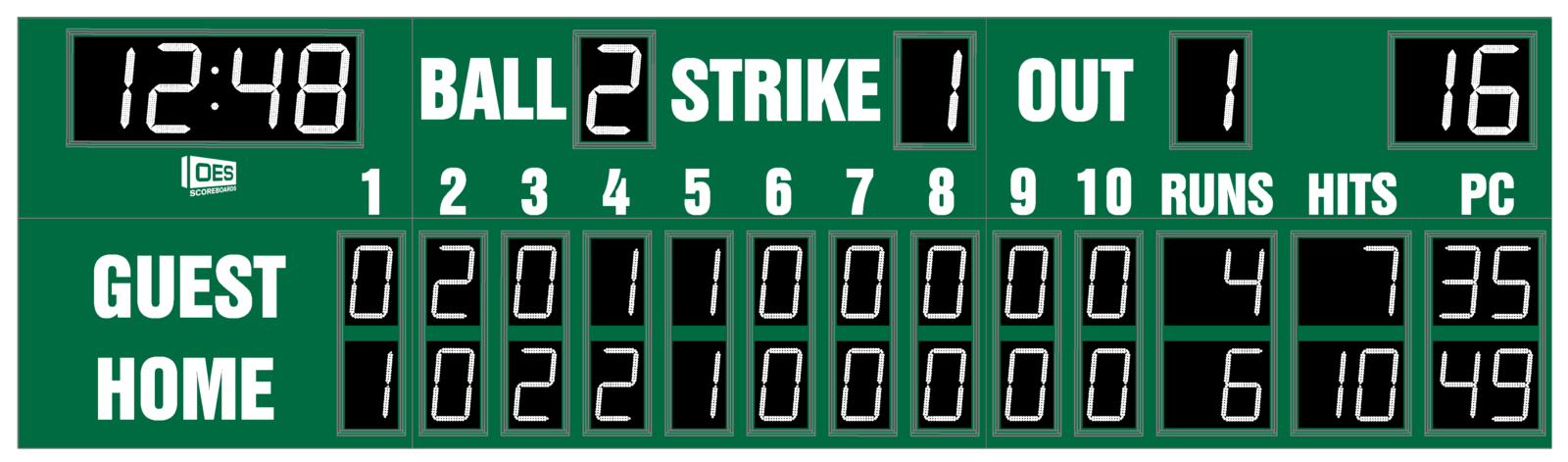

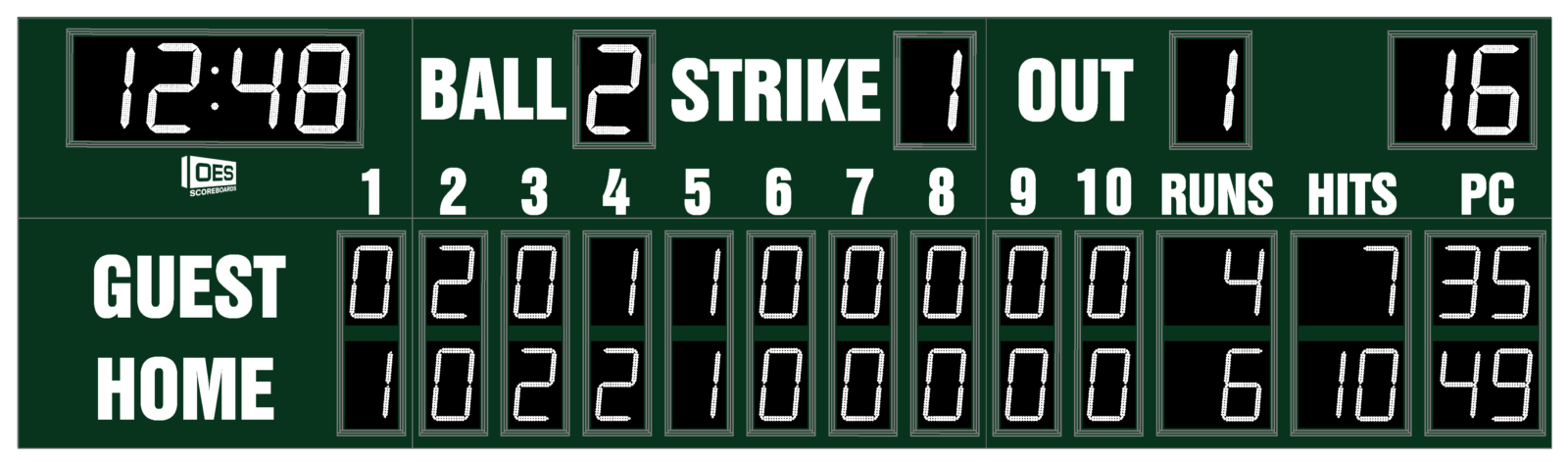

Scoreboard – M7125B

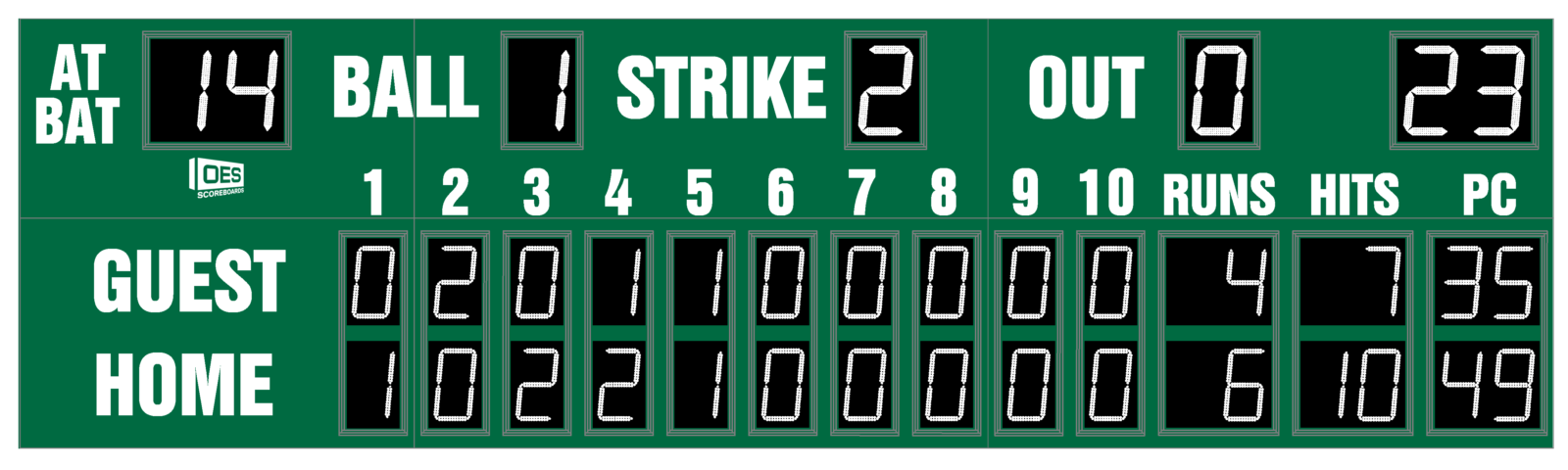

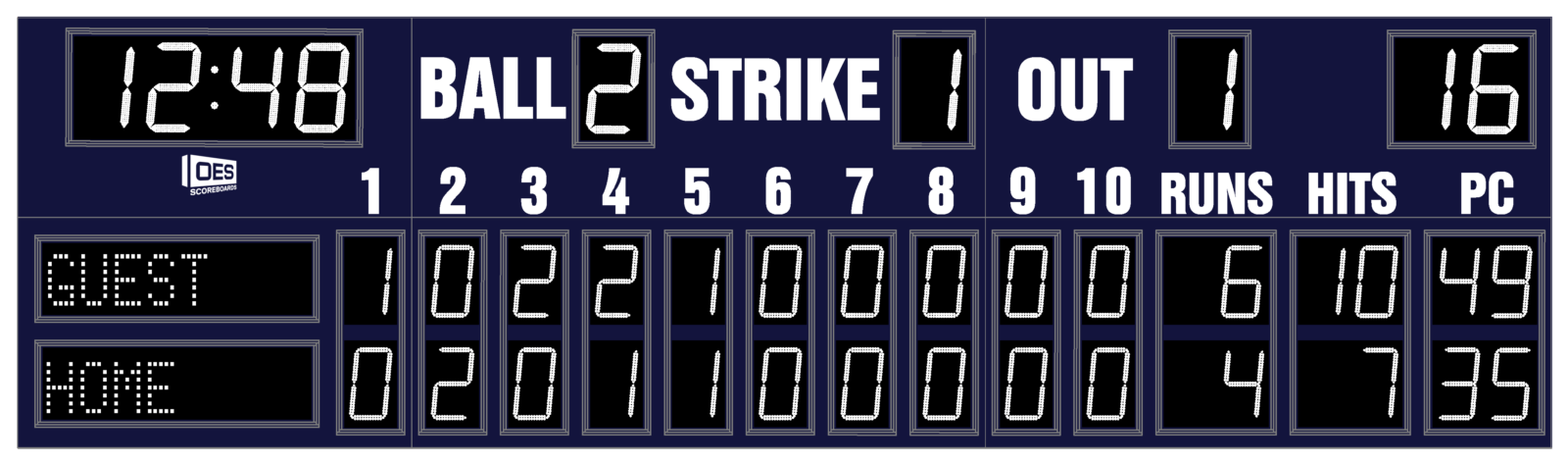

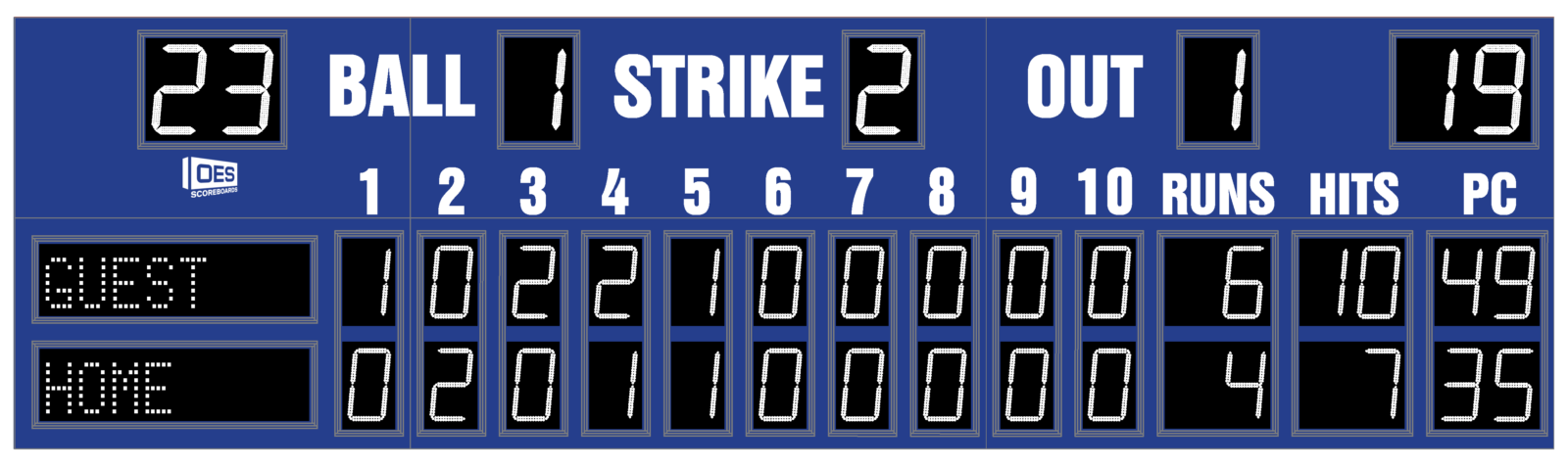

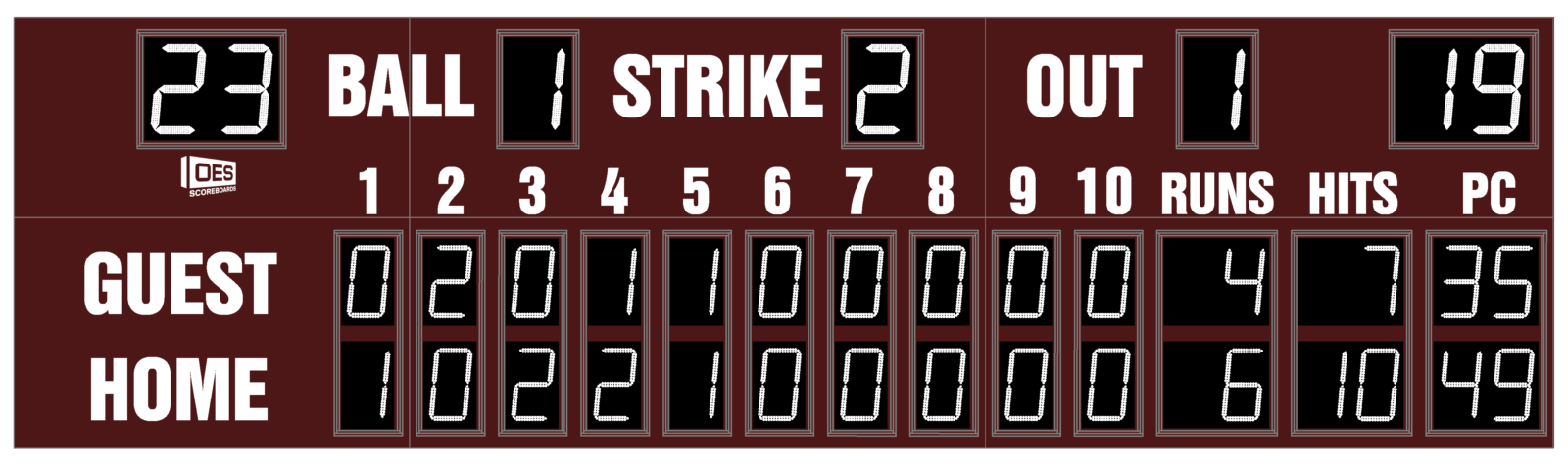

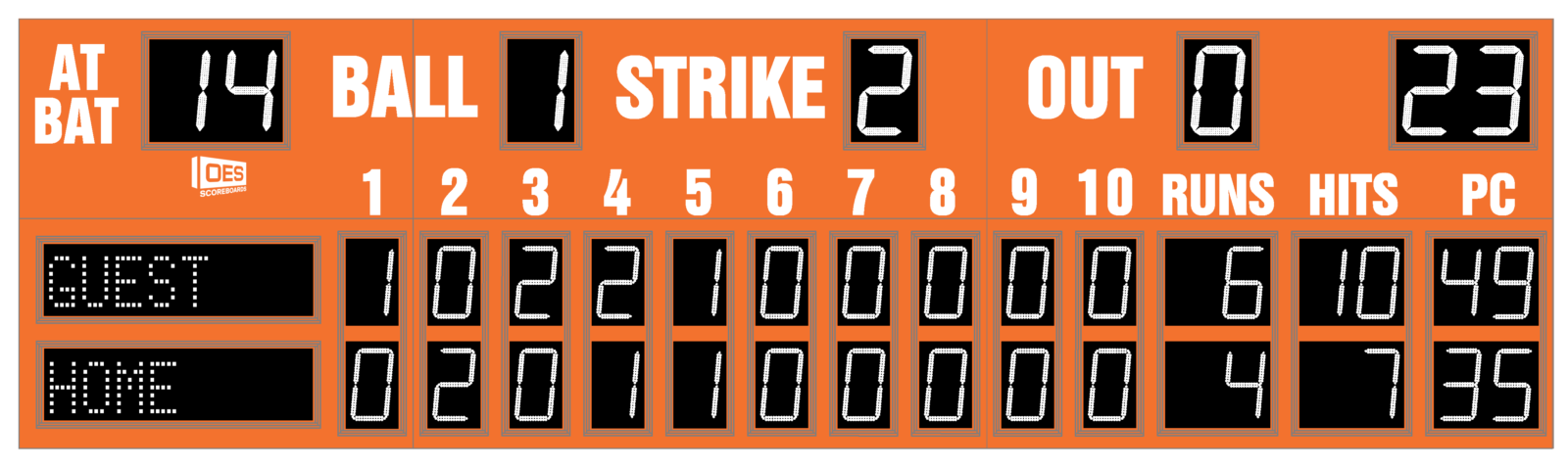

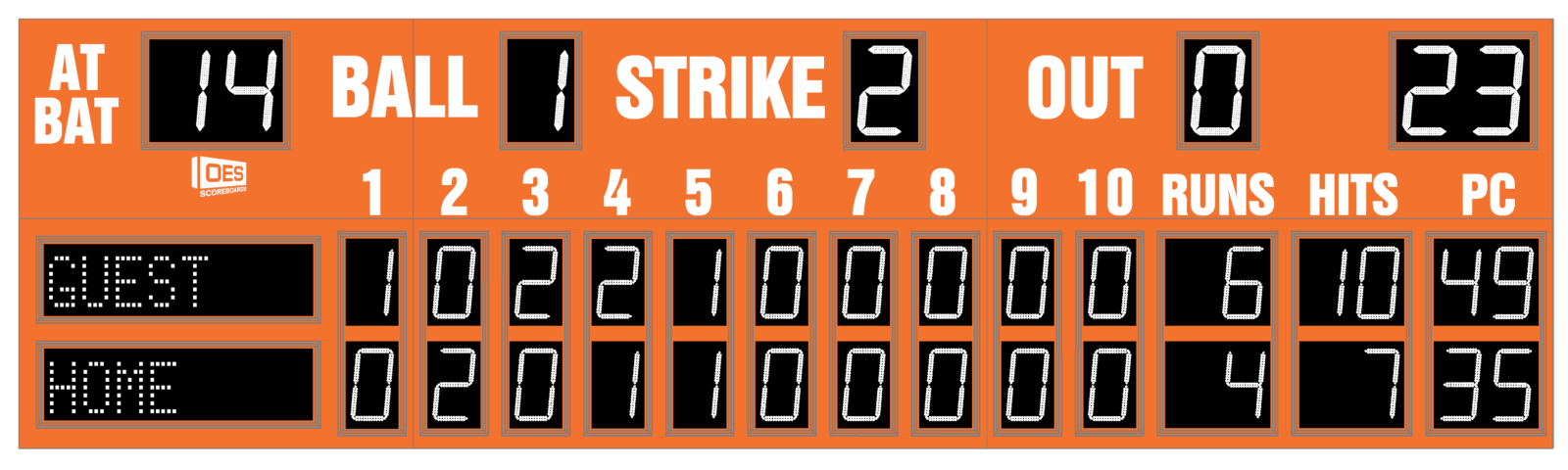

  • The M7125B outdoor scoreboard is designed for baseball and softball.
  • Built with shatter proof panels and superior components.
  • High intensity LED digits offer brilliant and superior viewing experience from almost any angle and distance.
  • Scoreboard displays home and guest team scores for up to 10 innings, total runs, hits, pitch count, ball, strike, out, last play, and at bat.

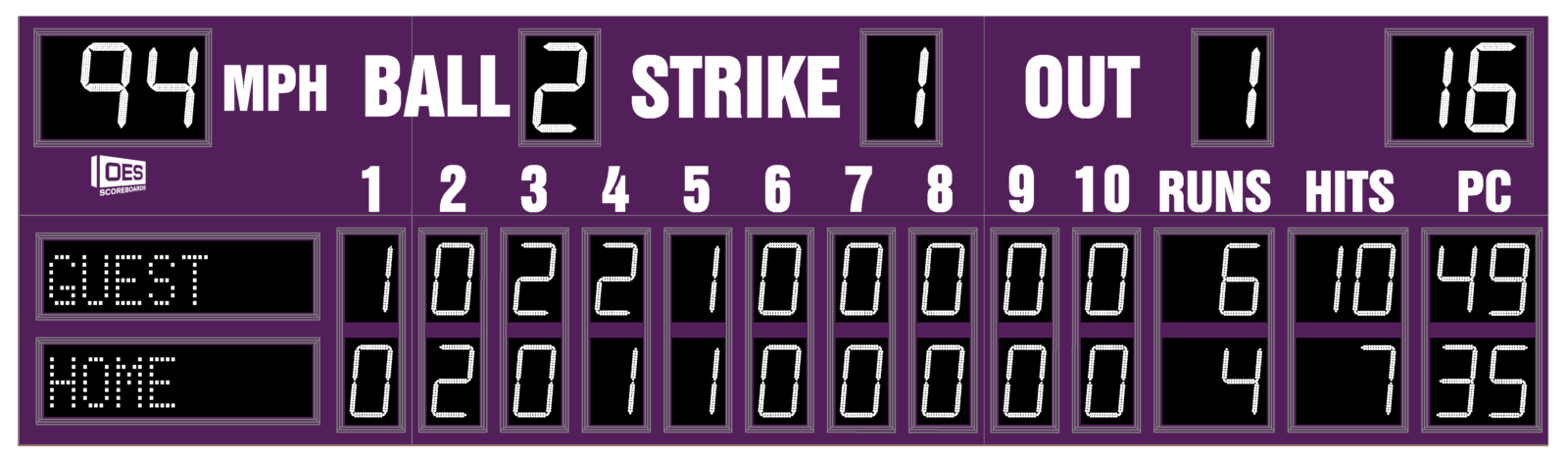

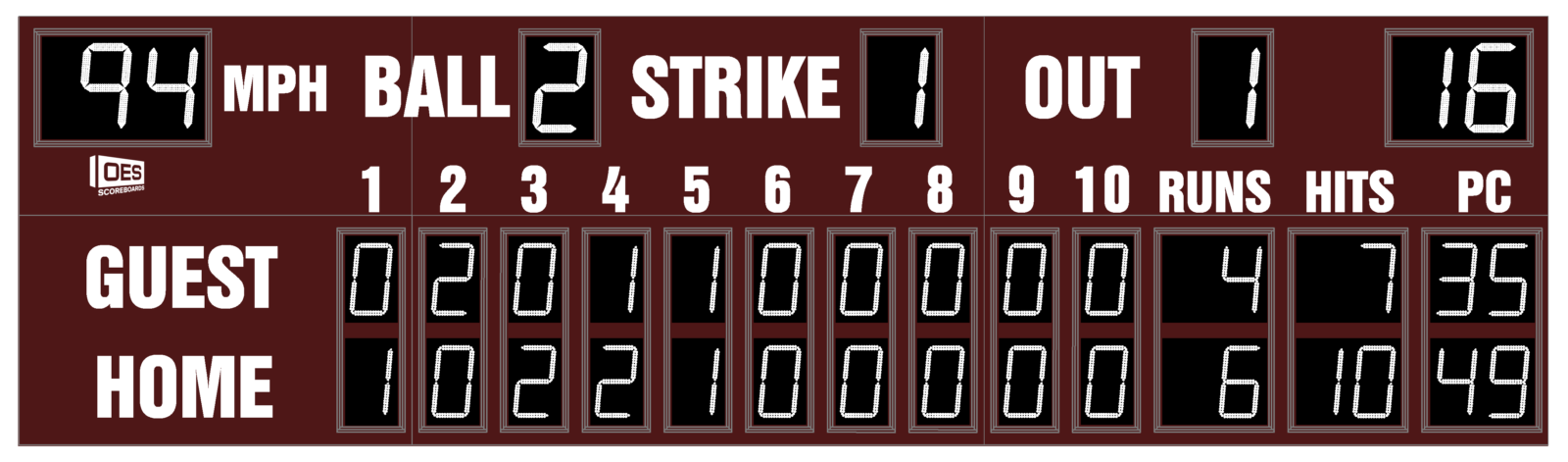

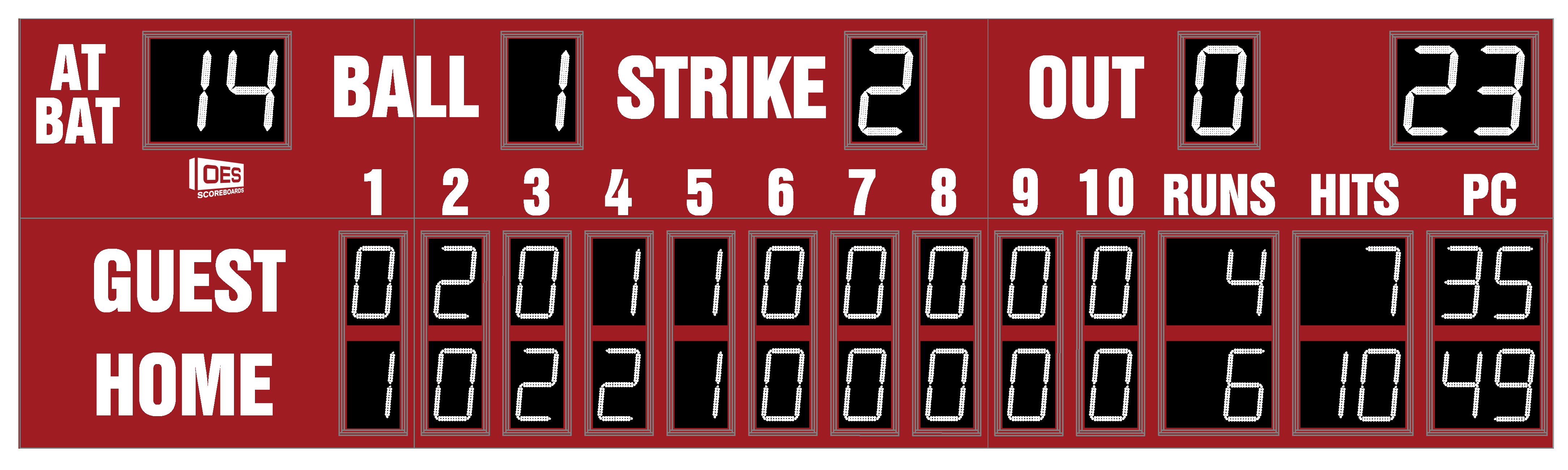

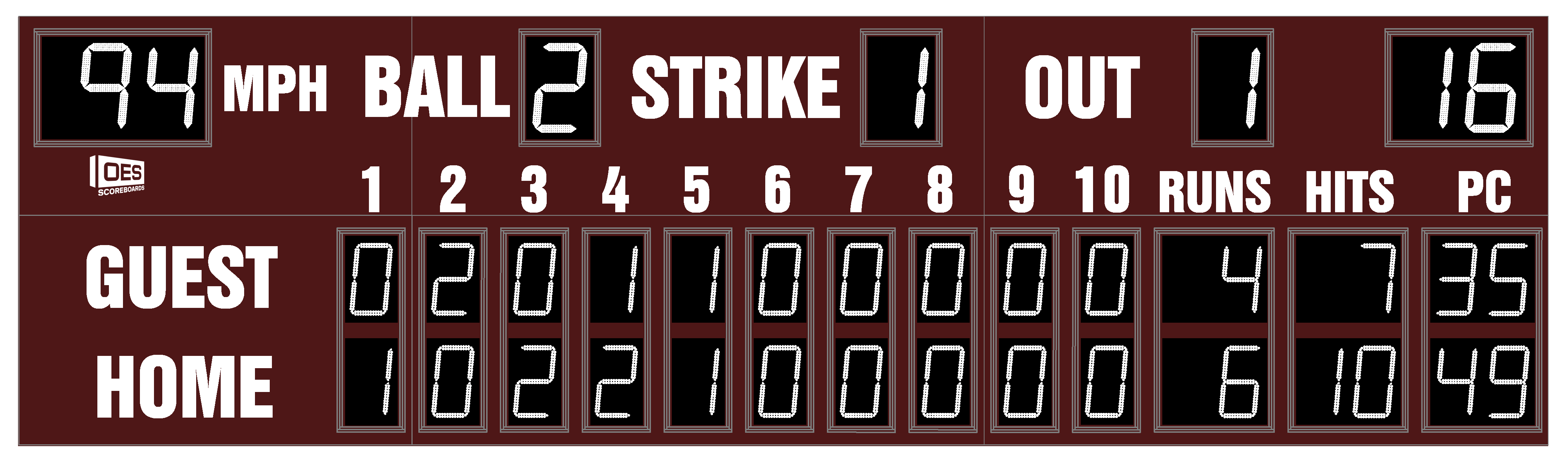

  • Last play displays hit or error along with position number for the error. At bat display can be optionally configured to a game timer, time of day clock or MPH display.
  • Colour Options

    Digit Color

    Our scoreboard digits are built with higher intensity LEDs and incorporate more LEDs per digit than other companies. The result is brilliant and superior viewing experience from almost any angle and distance. Choose from five standard digit colors including our renowned, ultra-bright white at no added cost.
    Whether it’s a scoreboard with one digit color or a mix and match of options, OES LED digits will set your scoreboard apart from the crowd.

    Amber
    Red
    Blue
    Green
    White

    Enclosure Color

    Our scoreboard enclosures are known for their color brightness, fade resistance and durability. Choose from a variety of popular enclosure colors to make your scoreboard stand out.
    Don’t see your ideal color choice? We’ll use our custom color-matching process to determine the perfect color match.

    Dark Purple

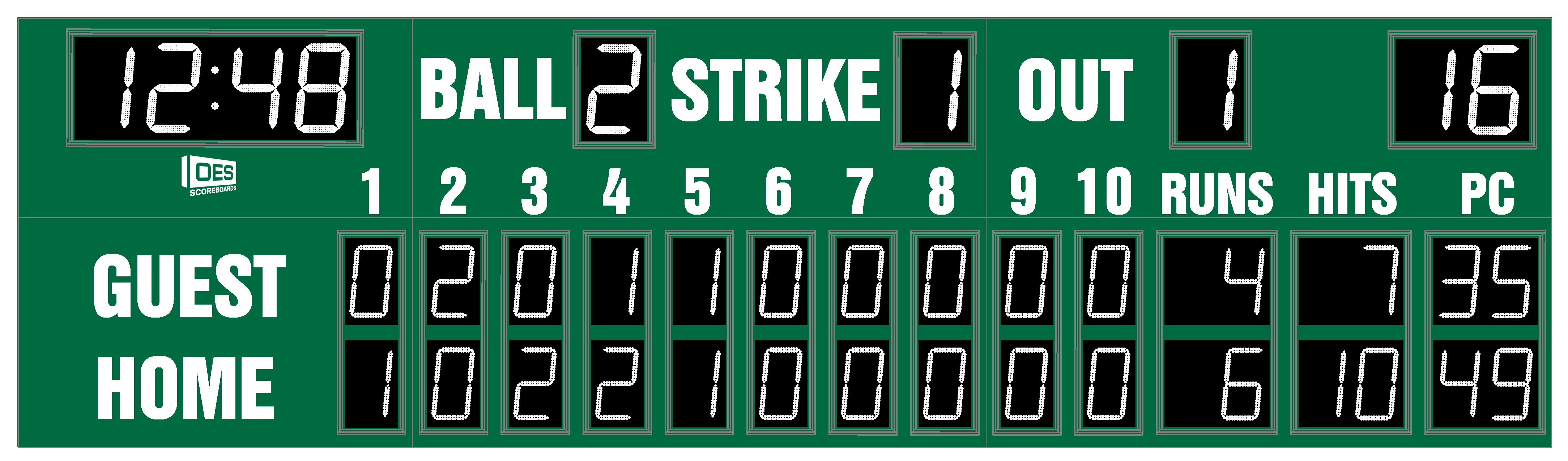

    Grass Green

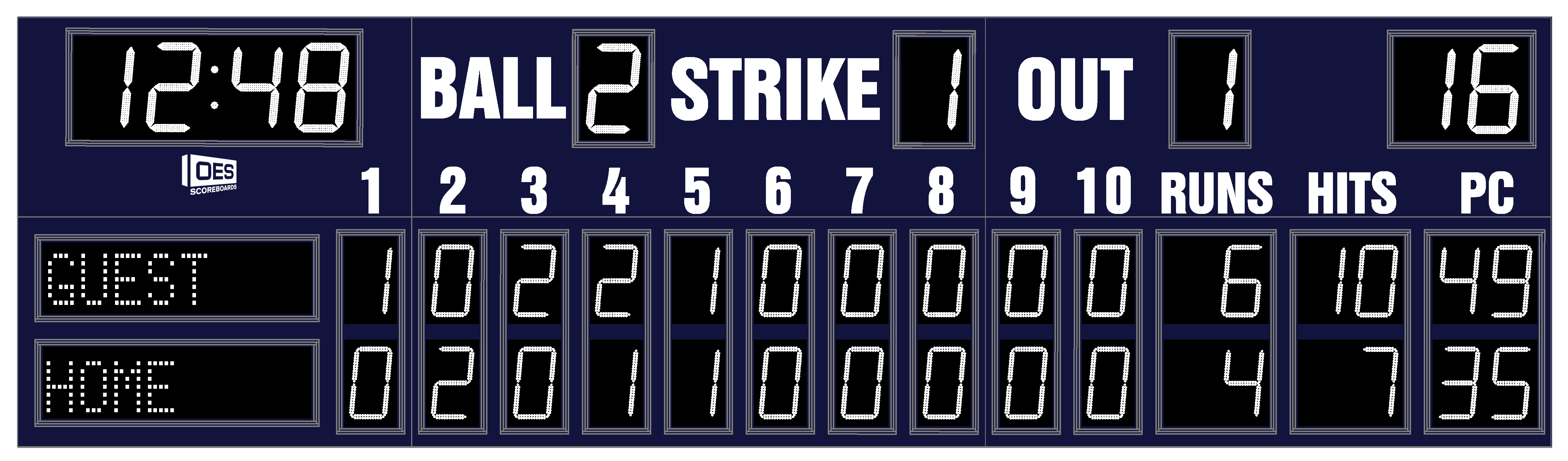

    Navy
    Olive Green

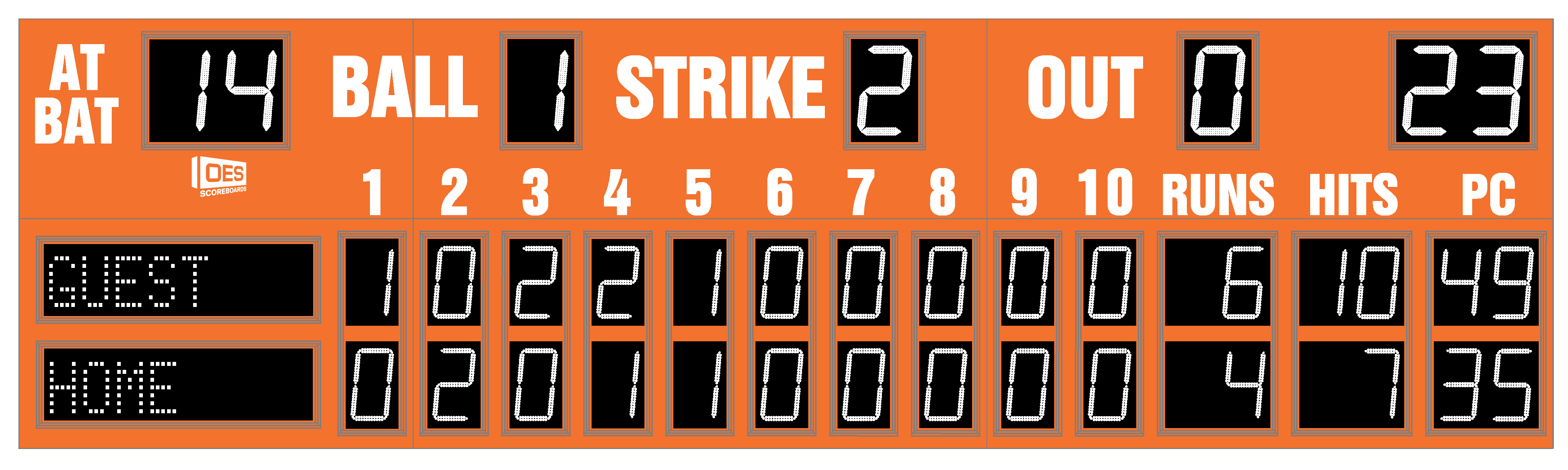

    Orange
    Black
    Forest Green
    Red
    Maroon

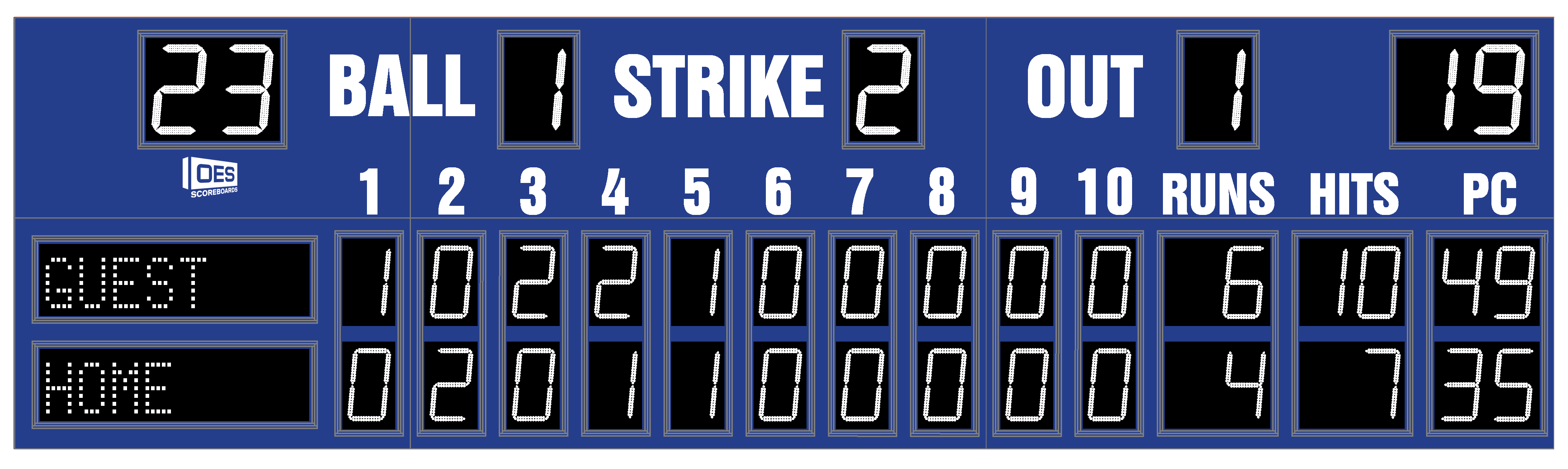

    Royal Blue

    Specifications

    Weight 1093 lbs
    Dimensions W: 25', H: 7', D: 6"
    Digit sizes

    Inning Scores: 14"
    Home and Guest Runs: 14"
    Runs: 14"
    Hits: 14"
    Pitch Count: 14"
    Ball: 17"
    Strike: 17"
    Out: 17"
    Last Play: 17"
    At Bat/Pitch Speed/Game Timer/Time of Day Clock: 17"

    Team name options

    10" Electronic
    Vinyl

    Caption options

    Vinyl

    Scoring options

    Pitch Count
    Pitch Speed
    Game Timer
    At Bat
    Time of Day Clock

    Accent options

    Electronic team names
    Perimeter striping

    Construction

    Aluminum enclosure with shatter resistant Lexan digit covers

    Track game time information with ease. Play time and practice segments can be easily tracked and displayed on our vivid display clocks.

    Have your scoring solution come alive with Bolt, OES’ live event production suite. Easily broadcast and entertain fans with live video feeds, sponsor ads, team messages, still and motion graphics. For an enhanced viewing experience, connect Bolt to your OES controller and display real time scoring and stats information.

    Customize your scoreboard to create a striking look and give sponsors an eye-catching place to advertise. Add options for decorative trusses, LED video, customized colors and electronic team names to complete the pro venue feel of your scoreboard. Popular options include:

    • Arches, trusses and identficaltion panels
    • Sponsor and advertising panels
    • LED Message displays
    • Colored vinyl captions
    • Electronic team names and game captions
    • Pitch counter and timers
    • Safety screens and netting
    • Wireless options
    • And more …

    For a complete list of accessories for your scoreboard, email scoreboard_requests@oes-inc.com.
